OSR5RU3E31B OPTOSUPPLY

Symbol Micros: OLC.3w1560bk

116195

OLC.3w1560bk

Contractor Symbol:

Case : Rys.OLC.3w1560bk

Datasheet

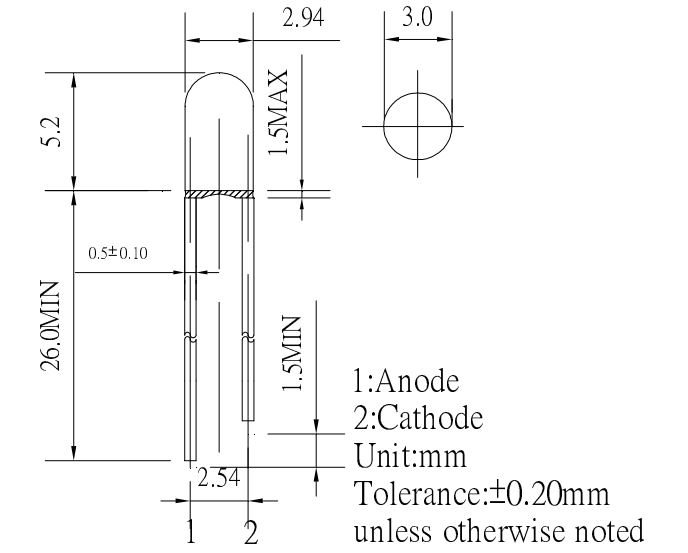

Technical drawing Add to favourites

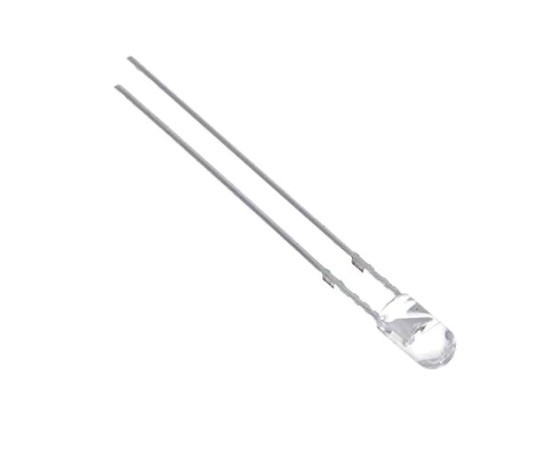

LED; THT; 3mm; red; 1120~1560mcd; 620~630nm; 30mA; 30°; 1.8~2.6V; -30°C~+85°C; waterclear; flangeless

Parameters

Manufacturer:	OPTOSUPPLY
Colour:	Red
Brightness:	1120~1560mcd
Forward current:	30mA
Viewing angle:	30°
Wavelength range:	620~630nm
Forvard volatge range:	1,8~2,6V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	OPTOSUPPLY
Colour:	Red
Brightness:	1120~1560mcd
Forward current:	30mA
Viewing angle:	30°
Wavelength range:	620~630nm
Forvard volatge range:	1,8~2,6V
Operating temperature (range):	-30°C ~ 85°C
Mounting:	THT
Diameter:	3mm
