503VC2V-4CD LuckyLight

Symbol Micros: OLC.503VC2V-4CD

410542

OLC.503VC2V-4CD

Contractor Symbol:

Case : Rys.OLC.503VC2V-4CD

Datasheet

Technical drawing Add to favourites

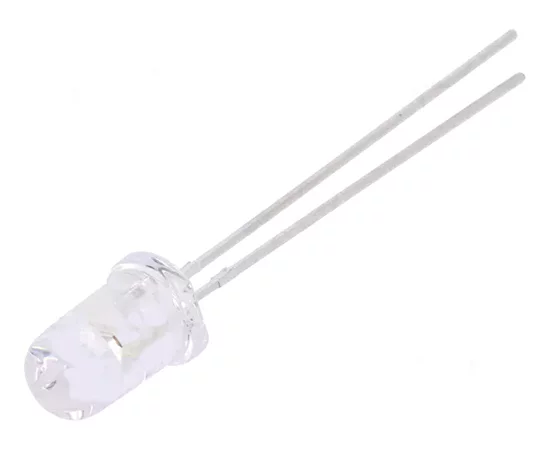

LED THT; red; luminosity: 2900-5000mcd; viewing angle: 30°; diode current: 25mA Wavelength: 624-632nm; transparent; power: 60mW; working voltage: 1,6-2,4V

Parameters

Colour:	Red
Wavelength range:	624nm ~ 632nm
Brightness:	2900mcd ~ 5000mcd
Forward current:	25mA
Viewing angle:	30°
Forvard volatge range:	1,6V ~ 2,4V
Operating temperature (range):	-40°C ~ 80°C

All parameters

Manufacturer:: LUCKY LIGHT Manufacturer part number: 503VC2V-4CD RoHS Case style: Rys.OLC.503VC2V-4CD

In stock:

1000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2550	0,1289	0,0777	0,0614	0,0567

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Colour:	Red
Wavelength range:	624nm ~ 632nm
Brightness:	2900mcd ~ 5000mcd
Forward current:	25mA
Viewing angle:	30°
Forvard volatge range:	1,6V ~ 2,4V
Operating temperature (range):	-40°C ~ 80°C
Mounting:	THT
Diameter:	5mm
