599-0010-007F DIALIGHT

Symbol Micros: OLC.599-0010-007F

502930

OLC.599-0010-007F

Contractor Symbol:

Case : Rys.OLC.599-0010-007F

Datasheet

Technical drawing Add to favourites

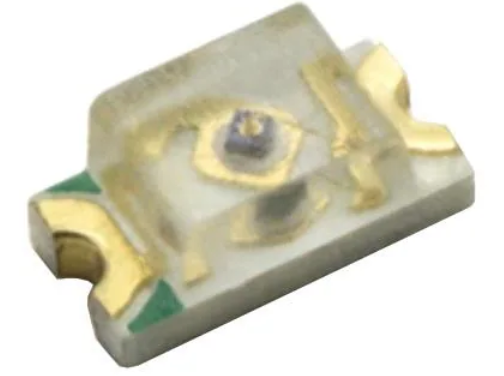

LED SMD 0603 red; luminosity: 23-45mcd; diode current: 30mA Wavelenght: 625-640nm; viewing angle: 140°; operating voltage: 2,1-2,5V; power: 72mW

Parameters

Manufacturer:	DIALIGHT
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	23mcd ~ 45mcd
Viewing angle:	140°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	DIALIGHT
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	23mcd ~ 45mcd
Viewing angle:	140°
LED diode current:	30mA
Power:	72mW
Front:	Flat
Nominal voltage:	2,1V ~ 2,5V
Wavelength range:	625nm ~ 640nm
Operating temperature (range):	-40°C ~ 100°C
