HSMC-C280 BROADCOM

Symbol Micros: OLC.HSMC-C280

411621

OLC.HSMC-C280

Contractor Symbol:

Case : Rys.OLC.HSMC-C280

Datasheet

Technical drawing Add to favourites

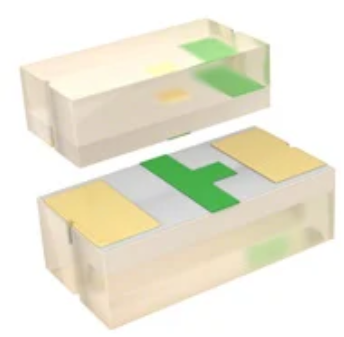

LED SMD 0402; red; luminosity: 28,5-90mcd; wavelenght: 626-637nm; viewing angle: 130° Current: 25mA; operating voltage: 1,6-2,4V; operating temperature: -40°C ~ 85°C

Parameters

Brightness:	28,5mcd ~ 90mcd
Colour:	Red
Forvard volatge range:	1,6V ~ 2,4V
Forward current:	25mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	130°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	28,5mcd ~ 90mcd
Colour:	Red
Forvard volatge range:	1,6V ~ 2,4V
Forward current:	25mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	130°
Wavelength range:	626nm ~ 637nm
