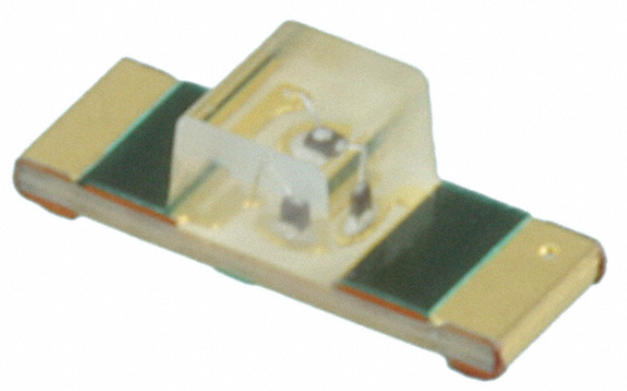

HSMH-C265 BROADCOM

Symbol Micros: OLC.HSMH-C265

477501

OLC.HSMH-C265

Contractor Symbol:

Case : Rys.OLC.HSMH-C265

Datasheet

Technical drawing Add to favourites

LED red 1305; wymiary: 3,4x1,25x1,1mm; luminosity: 7,2-17mcd; diode current: 25mA Wavelenght: 639-660nm; operating voltage: 1,6-2,6V

Parameters

Mounting:	SMD
Colour:	Red
Brightness:	7,2mcd ~ 17mcd
Wavelength range:	639nm ~ 660nm
Forward current:	25mA
Viewing angle:	170°
Forvard volatge range:	1,6V ~ 2,6V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Mounting:	SMD
Colour:	Red
Brightness:	7,2mcd ~ 17mcd
Wavelength range:	639nm ~ 660nm
Forward current:	25mA
Viewing angle:	170°
Forvard volatge range:	1,6V ~ 2,6V
Operating temperature (range):	-40°C ~ 85°C
Case:	1305
