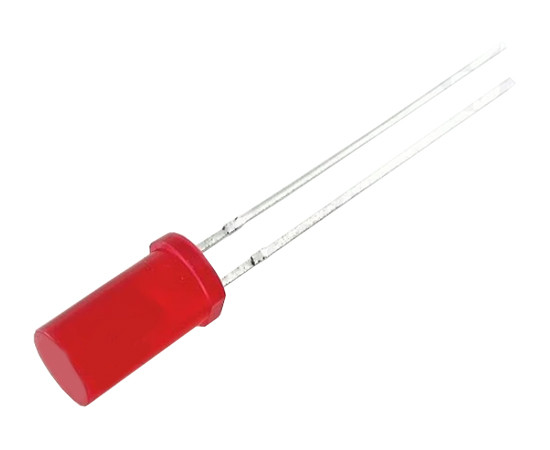

L-53SRC-J4 Kingbright

Symbol Micros: OLC.L-53SRC-J4

400152

OLC.L-53SRC-J4

Contractor Symbol:

Case : Rys.OLC.L-53SRC-J4

Datasheet

Technical drawing Add to favourites

LED THT; 5mm; red; luminosity: 5000-8000mcd; viewing angle: 20°; diode current: 30mA Wavelenght: 640nm; transparent; terminal pitch: 2,54mm; working voltage: 2,1-2,5V

Parameters

Colour:	Red
Brightness:	5000mcd ~ 8000mcd
Lighting angle (ellipse):	20°
Forward current:	30mA
Forvard volatge range:	2,1V ~ 2,5V
Wavelength (nm):	640nm
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Red
Brightness:	5000mcd ~ 8000mcd
Lighting angle (ellipse):	20°
Forward current:	30mA
Forvard volatge range:	2,1V ~ 2,5V
Wavelength (nm):	640nm
Mounting:	THT
Dimensions:	5mm
