LSL29K-H1J2-1 OSRAM

Symbol Micros: OLC.LSL29K-H1J2-1

398433

OLC.LSL29K-H1J2-1

Contractor Symbol:

Case : Rys.OLC.LSL29K-H1J2-1

Datasheet

Technical drawing Add to favourites

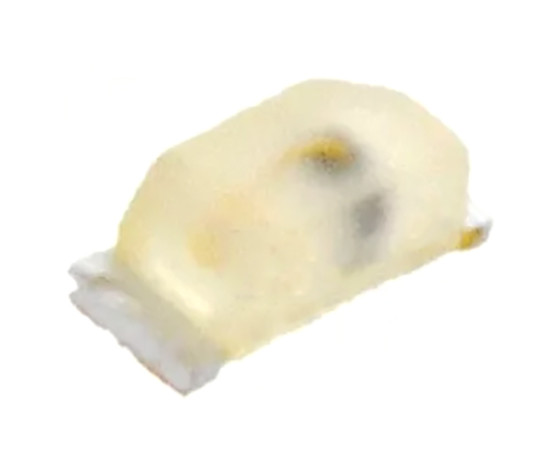

LED SMD 0603; red; luminosity: 2,8-7,1mcd; viewing angle: 160°; diode current: 2mA Wavelength: 624-636nm; diffused; working voltage: 1,7-2,2V

Parameters

Manufacturer:	OSRAM
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	2,8mcd ~ 7,1mcd
Viewing angle:	160°

All parameters

Manufacturer:: OSRAM Opto Semiconductors Manufacturer part number: LSL29K-H1J2-1 RoHS Case style: Rys.OLC.LSL29K-H1J2-1

In stock:

4880 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2304	0,1156	0,0687	0,0570	0,0513

Add to comparison tool Add inquiry (RFQ)

Packaging:
5000 Quantity (multiple: 1)

- +

Manufacturer:: AMSOSRAM Manufacturer part number: LSL29K-H1J2-1-Z Case style: Rys.OLC.LSL29K-H1J2-1

External warehouse:

155000 pcs.

Quantity of pcs.	10000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0512

Add to comparison tool Add inquiry (RFQ)

Packaging:
5000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	OSRAM
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	2,8mcd ~ 7,1mcd
Viewing angle:	160°
LED diode current:	2mA
Wavelength (nm):	636nm
Diode lens:	Diffusive
Front:	Flat
Nominal voltage:	1,7V ~ 2,2V
