N0R11S55 Brightek

Symbol Micros: OLC.N0R11S55

403747

OLC.N0R11S55

Contractor Symbol:

Case : Rys.OLC.N0R11S55

Datasheet

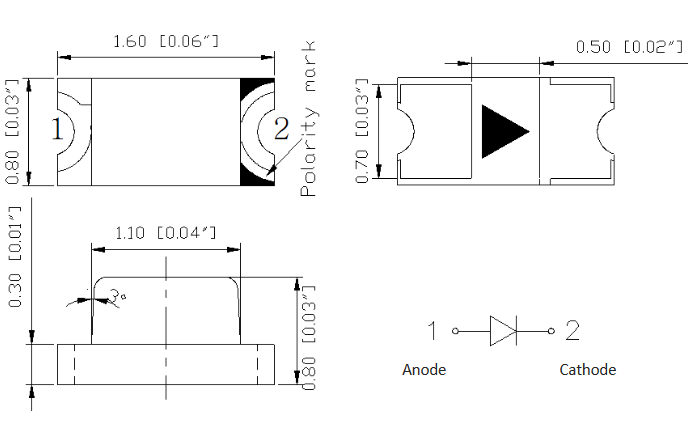

Technical drawing Add to favourites

LED SMD 0603; red; luminosity: 80-260mcd; viewing angle: 140°; diode current: 30mA Wavelength: 615-630nm; working voltage: 1,7-2,5V; power: 75mW

Parameters

Brightness:	80mcd ~ 260mcd
Case:	0603
Diode type:	LED
LED colours:	Red
LED diode current:	20mA
Manufacturer:	Brightek
Mounting:	SMD

All parameters

Manufacturer:: BRIGHTEK Manufacturer part number: N0R11S55 RoHS Case style: Rys.OLC.N0R11S14

In stock:

2850 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,1633	0,0775	0,0436	0,0332	0,0297

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Brightness:	80mcd ~ 260mcd
Case:	0603
Diode type:	LED
LED colours:	Red
LED diode current:	20mA
Manufacturer:	Brightek
Mounting:	SMD
Nominal voltage:	1,7V ~ 2,5V
Operating temperature (range):	-40°C ~ 80°C
Power:	75mW
Viewing angle:	140°
Wavelength range:	615nm ~ 630nm
