OSNR5134A OPTOSUPPLY

Symbol Micros: OLC.OSNR5134A

535065

OLC.OSNR5134A

Contractor Symbol:

Case : Rys.OLC.OSNR5134A

Datasheet

Technical drawing Add to favourites

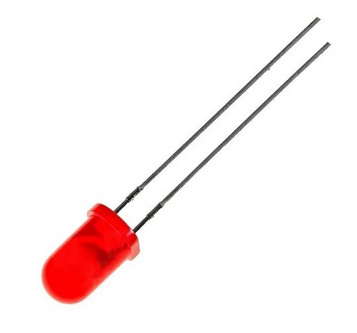

LED THT; diffused; red; luminosity: 10-15mcd; viewing angle: 30°; current voltage: 30mA Wavelenght: 630-650nm; working voltage: 1,8-2,4V

Parameters

Manufacturer:	OPTOSUPPLY
Colour:	Red
Wavelength range:	630nm ~ 650nm
Brightness:	10mcd ~ 15mcd
Forward current:	30mA
Viewing angle:	30°
Forvard volatge range:	1,8V ~ 2,4V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	OPTOSUPPLY
Colour:	Red
Wavelength range:	630nm ~ 650nm
Brightness:	10mcd ~ 15mcd
Forward current:	30mA
Viewing angle:	30°
Forvard volatge range:	1,8V ~ 2,4V
Operating temperature (range):	-30°C ~ 85°C
Mounting:	THT
Diameter:	5mm
