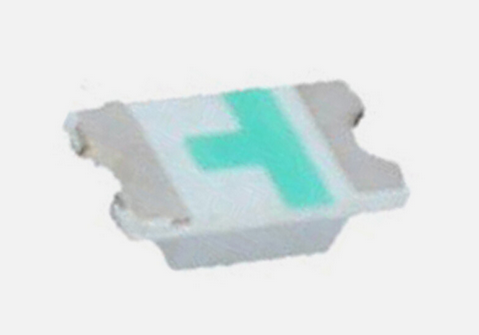

OSR51206E1N-0.8T OPTOSUPPLY

Symbol Micros: OLC.OSR51206E1N-0.8T

535148

OLC.OSR51206E1N-0.8T

Contractor Symbol:

Case : Rys.OLC.OSR51206E1N-0.8T

Datasheet

Technical drawing Add to favourites

LED SMD 1206 (3216); red; reverse mounting; luminosity: 100mcd; viewing angle: 140° Diode current: 20mA; wavelength: 625nm; transparent; working voltage: 1,8-2,6V

Parameters

Manufacturer:	OPTOSUPPLY
Diode type:	LED
Mounting:	SMD
Case:	1206
LED colours:	Red
Brightness:	80mcd ~ 100mcd
Viewing angle:	140°

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSR51206E1N-0.8T RoHS Case style: Rys.OLC.OSR51206E1N-0.8T

In stock:

6000 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,1322	0,0608	0,0331	0,0246	0,0220

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	OPTOSUPPLY
Diode type:	LED
Mounting:	SMD
Case:	1206
LED colours:	Red
Brightness:	80mcd ~ 100mcd
Viewing angle:	140°
LED diode current:	30mA
Power:	78mW
Wavelength range:	615nm ~ 630nm
Forvard volatge range:	1,8V ~ 2,6V
Operating temperature (range):	-40°C ~ 85°C
