TLMS1000-GS15 VISHAY

Symbol Micros: OLC.TLMS1000-GS15

529861

OLC.TLMS1000-GS15

Contractor Symbol:

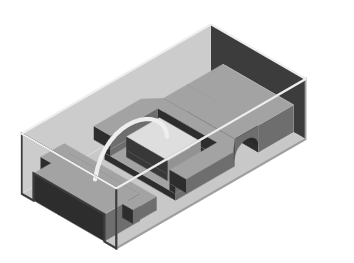

Case : Rys.OLC.TLMS1000-GS15

Datasheet

Add to favourites

LED SMD 0603 red; luminosity: 1,8-4mcd; diode current: 15mA Wavelenght: 624-636nm; viewing angle: 160°; operating voltage: 1,8-2,6V; power: 40mW

Parameters

Manufacturer:	VISHAY
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	1,8mcd ~ 4mcd
Viewing angle:	160°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	VISHAY
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Red
Brightness:	1,8mcd ~ 4mcd
Viewing angle:	160°
LED diode current:	15mA
Power:	40mW
Front:	Flat
Nominal voltage:	1,8V ~ 2,6V
Wavelength range:	600nm ~ 609nm
Operating temperature (range):	-40°C ~ 100°C
