XL-1608SURC-06FJ XINGLIGHT

Symbol Micros: OLC.XL-1608SURC-06FJ

503354

OLC.XL-1608SURC-06FJ

Contractor Symbol:

Case : Rys.OLC.XL-1608SURC-06FJ

Datasheet

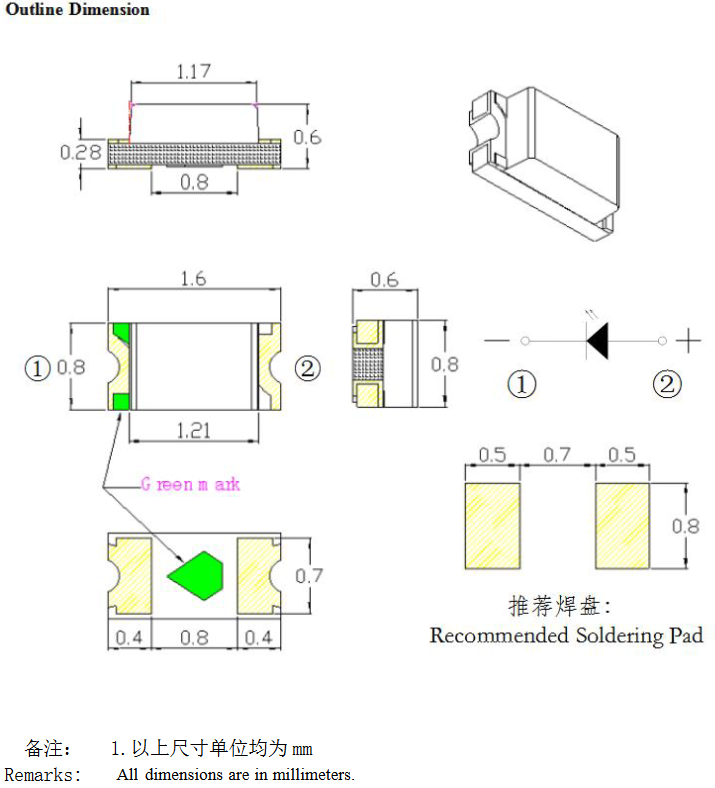

Technical drawing Add to favourites

LED SMD 0603 red; luminosity: 260-600mcd; diode current: 20mA Wavelenght: 615-630nm; viewing angle: 120°; operating voltage: 1,9-2,1V

Parameters

Brightness:	260mcd ~ 600mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Flat
LED colours:	Red
LED diode current:	20mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	260mcd ~ 600mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Flat
LED colours:	Red
LED diode current:	20mA
Manufacturer:	XINGLIGHT
Mounting:	SMD
Nominal voltage:	1,9V ~ 2,1V
Operating temperature (range):	-20°C ~ 85°C
Power:	0,05W
Viewing angle:	120°
Wavelength range:	615nm ~ 630nm
