XL-TD1608SURC XINGLIGHT

Symbol Micros: OLC.XL-TD1608SURC

503359

OLC.XL-TD1608SURC

Contractor Symbol:

Case : Rys.OLC.XL-TD1608SURC

Datasheet

Technical drawing Add to favourites

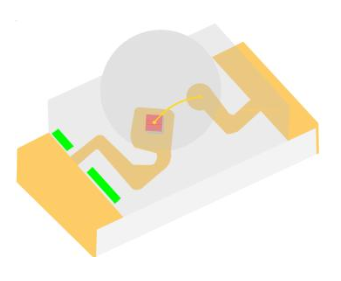

LED SMD 0603 red; luminosity: 200mcd; diode current: 20mA Wavelenght: 615-625nm; viewing angle: 35°; operating voltage: 1,9-2,3V

Parameters

Brightness:	200mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Flat
LED colours:	Red
LED diode current:	20mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	200mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Flat
LED colours:	Red
LED diode current:	20mA
Manufacturer:	XINGLIGHT
Mounting:	SMD
Nominal voltage:	1,9V ~ 2,3V
Operating temperature (range):	-40°C ~ 85°C
Power:	0,05W
Viewing angle:	35°
Wavelength range:	615nm ~ 625nm
