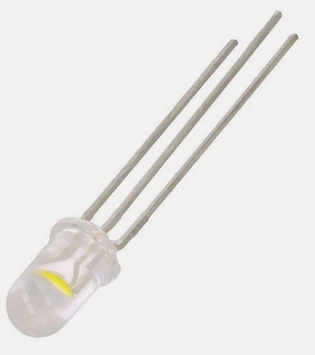

LTW30EEDYJA LITE-ON

Symbol Micros: OLCB.LTW30EEDYJA

532764

OLCB.LTW30EEDYJA

Contractor Symbol:

Case : Rys.OLCB.LTW30EEDYJA

Datasheet

Technical drawing Add to favourites

LED THT; diffused; red/white; common anode; luminosity: 4500-9300mcd/8000-18000mcd; viewing angle: 30°; current voltage: 30/30mA Wavelenght: 620-630nm; working voltage: 1,5-2,5V/2,5-3,2V

Parameters

Brightness:	4500mcd ~ 9300mcd/8000mcd ~ 18000mcd
Chromatic coordinates:	x: 0.31; y: 0.32
Colour:	Czerwony/Biały
Diameter:	5mm
Forvard volatge range:	1,5V ~ 2,5V/2,5V ~ 3,2V
Forward current:	30mA
Manufacturer:	Lite-On

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	4500mcd ~ 9300mcd/8000mcd ~ 18000mcd
Chromatic coordinates:	x: 0.31; y: 0.32
Colour:	Czerwony/Biały
Diameter:	5mm
Forvard volatge range:	1,5V ~ 2,5V/2,5V ~ 3,2V
Forward current:	30mA
Manufacturer:	Lite-On
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	30°
Wavelength range:	620nm ~ 630nm
