OSR5JA5TK4A OPTOSUPPLY

Symbol Micros: OLCC.5m0100

126794

OLCC.5m0100

Contractor Symbol:

Case : Rys.OLCC.5m0025

Datasheet

Technical drawing Add to favourites

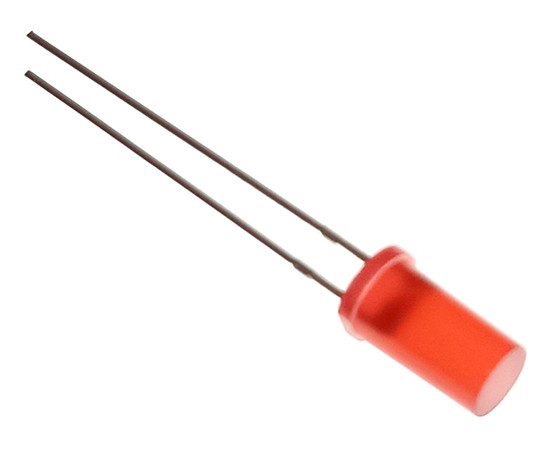

LED; THT; 5mm; red; 68~100mcd; 620~630nm; 30mA; 180°; 1.8~2.6V; -30~+85°C; diffused; cylindric

Parameters

Brightness:	68~100mcd
Colour:	Red
Diameter:	5mm
Forvard volatge range:	1,8~2,6V
Forward current:	30mA
Mounting:	THT
Operating temperature (range):	-30°C ~ 85°C

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSR5JA5TK4A RoHS Case style: Rys.OLCC.5m0025 Datasheet

In stock:

1100 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,2319	0,1180	0,0714	0,0568	0,0517

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/3000 Quantity (multiple: 1)

- +

• Parameters

Brightness:	68~100mcd
Colour:	Red
Diameter:	5mm
Forvard volatge range:	1,8~2,6V
Forward current:	30mA
Mounting:	THT
Operating temperature (range):	-30°C ~ 85°C
Viewing angle:	180°
Wavelength range:	620~630nm
