OSR5PA5TK4A OPTOSUPPLY

Symbol Micros: OLCC.5m0330

126795

OLCC.5m0330

Contractor Symbol:

Case : Rys.OLCC.5m0330

Datasheet

Technical drawing Add to favourites

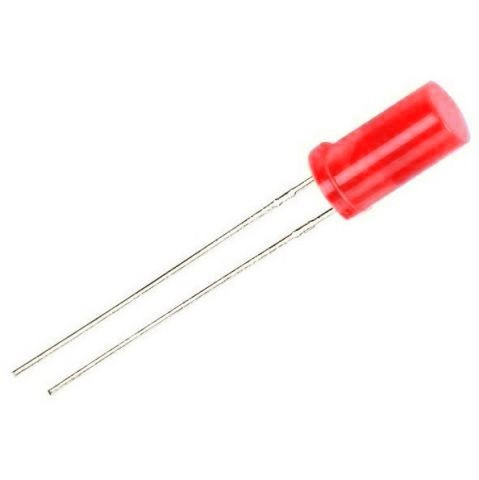

LED; THT; 5mm; red; 220~330mcd; 620~630nm; 30mA; 180°; 1.8~2.6V; -30~+85°C; diffused; cylindric

Parameters

Brightness:	220~330mcd
Colour:	Red
Diameter:	5mm
Forvard volatge range:	1,8~2,6V
Forward current:	30mA
Mounting:	THT
Operating temperature (range):	-30°C ~ 85°C

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSR5PA5TK4A RoHS Case style: Rys.OLCC.5m0330 Datasheet

In stock:

10000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2947	0,1622	0,1074	0,0893	0,0840

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/15000 Quantity (multiple: 1)

- +

• Parameters

Brightness:	220~330mcd
Colour:	Red
Diameter:	5mm
Forvard volatge range:	1,8~2,6V
Forward current:	30mA
Mounting:	THT
Operating temperature (range):	-30°C ~ 85°C
Viewing angle:	180°
Wavelength range:	620~630nm
