OLCYZ.5m0020

Symbol Micros: OLCYZ.5m0020

117697

OLCYZ.5m0020

Contractor Symbol:

Case : Rys.OLCYZ.5m0020

Datasheet

Technical drawing Add to favourites

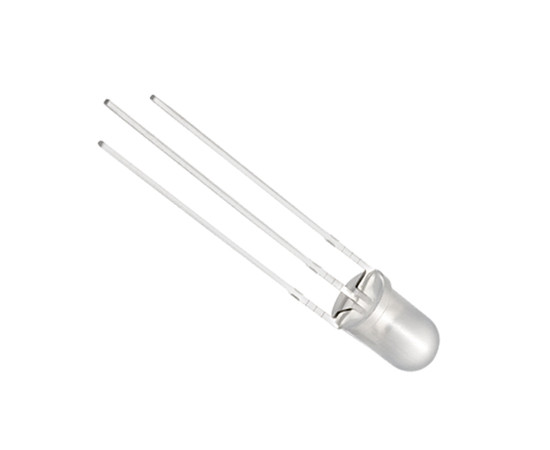

LED; THT; 5mm; red&yellow-green; 20mcd; 630~650/560~580nm; 30mA; 40°; 2.0~2.4V; -25~+85°C; diffused

Parameters

Brightness:	20mcd
Colour:	Red/Yellow-Green
Diameter:	5mm
Forvard volatge range:	2,0~2,4V
Forward current:	30mA
Mounting:	THT
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	20mcd
Colour:	Red/Yellow-Green
Diameter:	5mm
Forvard volatge range:	2,0~2,4V
Forward current:	30mA
Mounting:	THT
Operating temperature (range):	-25°C ~ 85°C
Viewing angle:	40°
Wavelength range:	630~650/560~580nm
