1L0593I1G12MA001 Brightek

Symbol Micros: OLCZ.5m0070-3wk

76708

OLCZ.5m0070-3wk

Contractor Symbol:

Case : Rys.OLCZ.5m0070-3wk

Datasheet

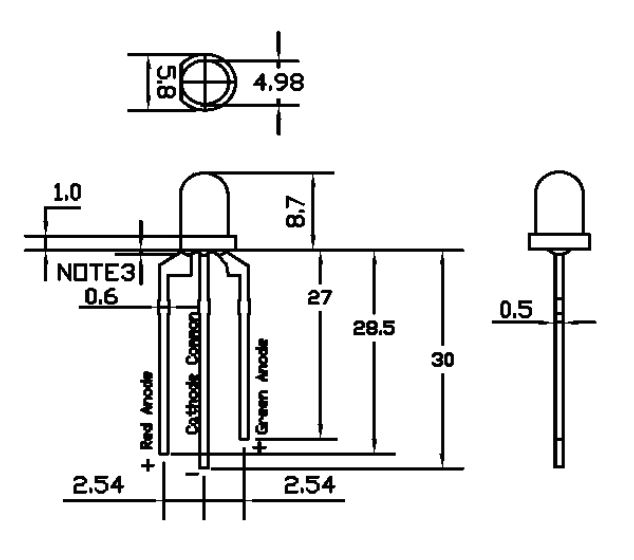

Technical drawing Add to favourites

LED; THT; 5mm; red/green; 20~48/30~71mcd; 615~625/564,5~576,5nm; 30mA; 50°; 1.7~2.4V; -30~+80°C; 3 pins; diffused

Parameters

Colour:	Red/Green
Wavelength range:	615~625/564,5~576,5nm
Brightness:	20~48/30~71mcd
Forward current:	30mA
Viewing angle:	50°
Forvard volatge range:	1,7~2,4V
Operating temperature (range):	-30°C ~ 80°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Red/Green
Wavelength range:	615~625/564,5~576,5nm
Brightness:	20~48/30~71mcd
Forward current:	30mA
Viewing angle:	50°
Forvard volatge range:	1,7~2,4V
Operating temperature (range):	-30°C ~ 80°C
Mounting:	THT
Diameter:	5mm
