OSRPPA5B32A

Symbol Micros: OLCZ.5m1560-3

186029

OLCZ.5m1560-3

Contractor Symbol:

Case : Rys.OLCZ.3m0035-3

Datasheet

Technical drawing Add to favourites

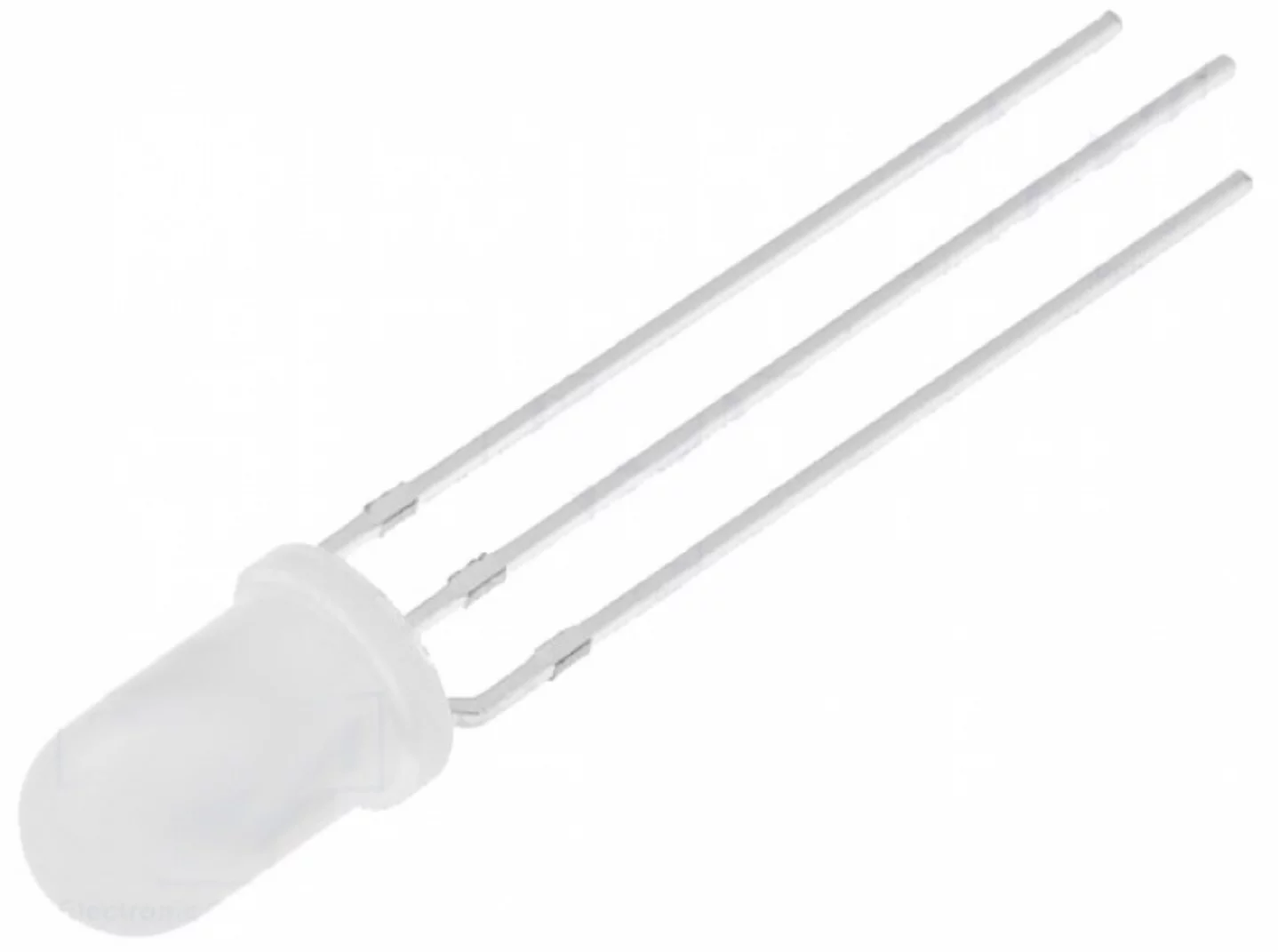

LED; THT; 5mm; red/green; 1560/1560mcd; 625/525nm; 30mA; 30°; 2.1/3.1V; 3 pins; diffused

Parameters

Colour:	Red/Green
Wavelength range:	625/525nm
Brightness:	1560/1560mcd
Forward current:	30mA
Viewing angle:	30°
Forvard volatge range:	2,1/3,1V
Mounting:	THT

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSRPPA5B32A RoHS Case style: Rys.OLCZ.3m0035-3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	3+	10+	30+	100+	300+
Net price (EUR)	0,3639	0,2345	0,1798	0,1517	0,1397

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSRPPA5B32A RoHS Case style: Rys.OLCZ.3m0035-3 Datasheet

In stock:

0 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3639	0,2014	0,1589	0,1444	0,1397

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/3000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-09-29

Quantity of pcs.: 2500





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-10-28

Quantity of pcs.: 3000

• Parameters

Colour:	Red/Green
Wavelength range:	625/525nm
Brightness:	1560/1560mcd
Forward current:	30mA
Viewing angle:	30°
Forvard volatge range:	2,1/3,1V
Mounting:	THT
Diameter:	5mm
