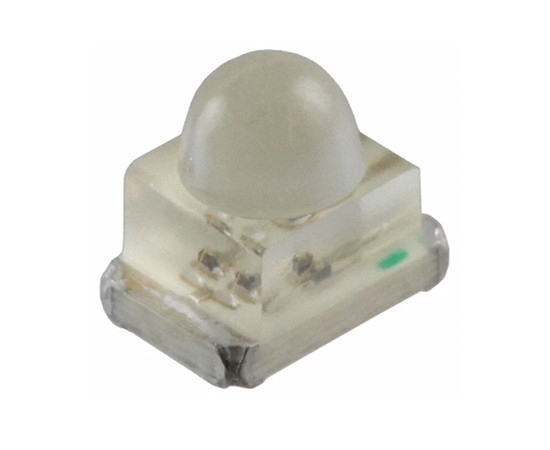

APBDA3020SURKCGKC-GX KINGBRIGHT

Symbol Micros: OLCZ.APBDA3020SURKCGKC-GX

530526

OLCZ.APBDA3020SURKCGKC-GX

Contractor Symbol:

Case : Rys.OLCZ.APBDA3020SURKCGKC-GX

Datasheet

Technical drawing Add to favourites

LED SMD red/green; luminosity: 500mcd ~ 900mcd/120mcd ~ 300mcd; diode current: 30mA Wavelenght: 630nm ~ 645nm/570nm ~ 574nm; viewing angle: 15°; operating voltage: 1,95V ~ 2,5V/2,1V ~ 2,5V

Parameters

Mounting:	SMD
Colour:	Red/Green
Brightness:	500mcd ~ 900mcd/120mcd ~ 300mcd
Wavelength range:	630nm ~ 645nm/570nm ~ 574nm
Forward current:	30mA
Viewing angle:	15°
Forvard volatge range:	1,95V ~ 2,5V/2,1V ~ 2,5V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Mounting:	SMD
Colour:	Red/Green
Brightness:	500mcd ~ 900mcd/120mcd ~ 300mcd
Wavelength range:	630nm ~ 645nm/570nm ~ 574nm
Forward current:	30mA
Viewing angle:	15°
Forvard volatge range:	1,95V ~ 2,5V/2,1V ~ 2,5V
Operating temperature (range):	-40°C ~ 85°C
