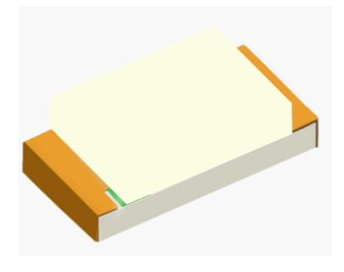

XL-1005BGWC XINGLIGHT

Symbol Micros: OLN.XL-1005BGWC

503328

OLN.XL-1005BGWC

Contractor Symbol:

Case : Rys.OLN.XL-1005BGWC

Datasheet

Technical drawing Add to favourites

LED SMD 0402 blue; luminosity: 500-1000mcd; diode current: 20mA Viewing angle: 120°; operating voltage: 2,7-3,3V

Parameters

Brightness:	500mcd ~ 1000mcd
Chromatic coordinates:	x: 0,1158; y:0,2774
Colour:	Blue
Forvard volatge range:	2,7V ~ 3,3V
Forward current:	20mA
Mounting:	SMD
Operating temperature (range):	-20°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	500mcd ~ 1000mcd
Chromatic coordinates:	x: 0,1158; y:0,2774
Colour:	Blue
Forvard volatge range:	2,7V ~ 3,3V
Forward current:	20mA
Mounting:	SMD
Operating temperature (range):	-20°C ~ 85°C
Viewing angle:	120°
