APHHS1005SECK KINGBRIGHT

Symbol Micros: OLP.APHHS1005SECK

531997

OLP.APHHS1005SECK

Contractor Symbol:

Case : Rys.OLP.APHHS1005SECK

Datasheet

Technical drawing Add to favourites

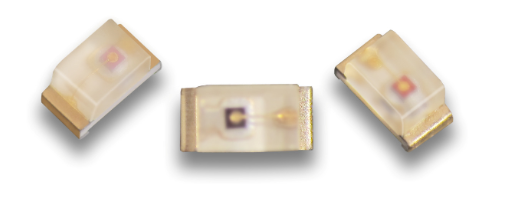

LED SMD 0402 orange; luminosity: 120-220mcd; diode current: 30mA Wavelenght: 605-610nm; viewing angle: 120°; operating voltage: 2,1-2,5V

Parameters

Brightness:	120mcd ~ 220mcd
Colour:	Orange
Forvard volatge range:	2,1V ~2,5V
Forward current:	30mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	120°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	120mcd ~ 220mcd
Colour:	Orange
Forvard volatge range:	2,1V ~2,5V
Forward current:	30mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	120°
Wavelength range:	605nm ~ 610nm
