KPTD-3216SEC Kingbright

Symbol Micros: OLP.KPTD-3216SEC

398378

OLP.KPTD-3216SEC

Contractor Symbol:

Case : Rys.OLP.KPTD-3216SEC

Datasheet

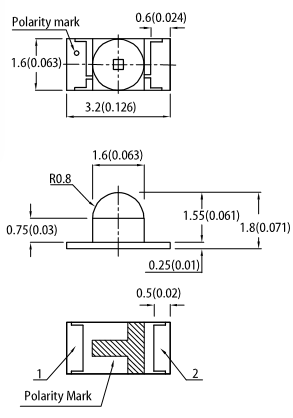

Technical drawing Add to favourites

LED SMD 1206 (3216); orange; luminosity: 1000-1700mcd; viewing angle: 40°; diode current: 20mA Wavelength: 605nm; diffuse/red; power: 75mW; working voltage: 2-2,5V

Parameters

Brightness:	1000mcd ~ 1700mcd
Case:	1206
Diode lens:	Transparent
Diode type:	LED
LED colours:	Orange
LED diode current:	20mA
Manufacturer:	KINGBRIGHT

All parameters

Manufacturer:: KingBright Manufacturer part number: KPTD-3216SEC RoHS Case style: Rys.OLP.KPTD-3216SEC

In stock:

1930 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,2806	0,1496	0,1164	0,1053	0,1018

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Brightness:	1000mcd ~ 1700mcd
Case:	1206
Diode lens:	Transparent
Diode type:	LED
LED colours:	Orange
LED diode current:	20mA
Manufacturer:	KINGBRIGHT
Mounting:	SMD
Nominal voltage:	2V ~ 2,5V
Power:	75mW
Viewing angle:	40°
Wavelength (nm):	605nm
