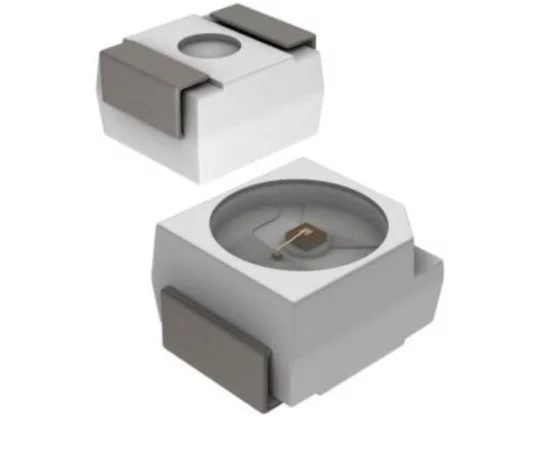

OSO5JAS1C1A-12V OPTOSUPPLY

Symbol Micros: OLP.PLCC4.100-12R

117075

OLP.PLCC4.100-12R

Contractor Symbol:

Case : Rys.OLP.PLCC4.100-12R

Datasheet

Technical drawing Add to favourites

3528 (PLCC4) LED; orange (605nm); luminosity: 68 -100 mcd; viewing angle 120°; IF=15mA; VF=12V; Resistor

Parameters

Brightness:	68 -100 mcd
Colour:	Orange
Forvard volatge [UF]:	12,0V
Forward current:	15mA
Mounting:	SMD
Operating temperature (range):	-30°C ~ 85°C
Viewing angle:	120°

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSO5JAS1C1A-12V RoHS Case style: Rys.OLP.PLCC4.100-12R Datasheet

In stock:

140 pcs.

Quantity of pcs.	3+	10+	50+	300+	1500+
Net price (EUR)	0,3141	0,2010	0,1415	0,1203	0,1142

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

• Parameters

Brightness:	68 -100 mcd
Colour:	Orange
Forvard volatge [UF]:	12,0V
Forward current:	15mA
Mounting:	SMD
Operating temperature (range):	-30°C ~ 85°C
Viewing angle:	120°
Wavelength (nm):	605nm
