OLPX.CTRL.T-1000S

Symbol Micros: OLPX.CTRL.T-1000S
Contractor Symbol:
Case : Yv_T1000S
RGB LED pixel bundle controller, 5-24V DC, control up to 2048 pixels with SD card, dimensions: 160x90x25mm, for OLPX.RGB pixels
Parameters
Dimensions: 160x90x25mm
Nominal voltage: 5V ~ 24V
Mass: 280g
Parameters: SD Card
Manufacturer: IMPORT
Manufacturer:: import Manufacturer part number: OLPX.CTRL.T-1000S RoHS Case style: Yv_T1000S
In stock:
1 pcs.
Quantity of pcs. 1+ 5+ 10+ 20+ 40+
Net price (EUR) 24,1176 22,9882 22,6988 22,4871 22,3294
Add to comparison tool
Packaging:
5
Dimensions: 160x90x25mm
Nominal voltage: 5V ~ 24V
Mass: 280g
Parameters: SD Card
Manufacturer: IMPORT
Detailed description

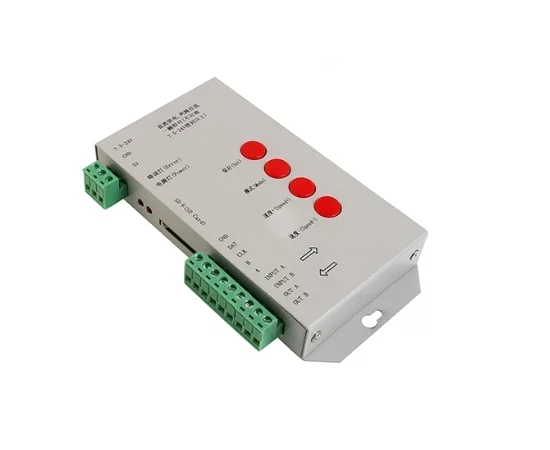

Product type: T1000S Controller for LED Pixels and Digital Strips with SD Card

Power supply voltage: 5–24V DC (requires power supply)
Dimensions: 160x90x25mm
Supports up to: 2048 pixels
Control: Program stored on SD card or predefined programs in device memory
Maximum number of programs on SD card: 16 (Card must be formatted in "FAT" file system)
Program files must be named: 00_1.led, 01_1.led, 02_1.led, ....
Buttons on the control panel:

  • SET – saves the current settings file and playback speed
  • MODE – changes the program
  • SPEED+ – speeds up the program
  • SPEED- – slows down the program

SD memory card included
Compatibility: RGB digital strips and LED pixels controlled by
LPD6803, LPD8806, TM1803, TM1903, UCS6909, UCS1903, UCS3903, DMX512, WS2801, WS2811
It is possible to connect multiple T-1000S controllers
Indicator LEDs: Error and Power

Compatible with pixel bundles available in our offer:
OLPX.RGB.5-50-RL
OLPX.RGB.12-50-R
OLPX.RGB.5-50-R

and digital LED strips based on WS2811 chipset


Download LED Edit 2014 software
