OLR.3w1560-12V OPTOSUPPLY

Symbol Micros: OLR.3w1560-12V

105499

OLR.3w1560-12V

Contractor Symbol:

Case : Rys.OLR.3w1560-12v

Datasheet

Technical drawing Technical drawing Add to favourites

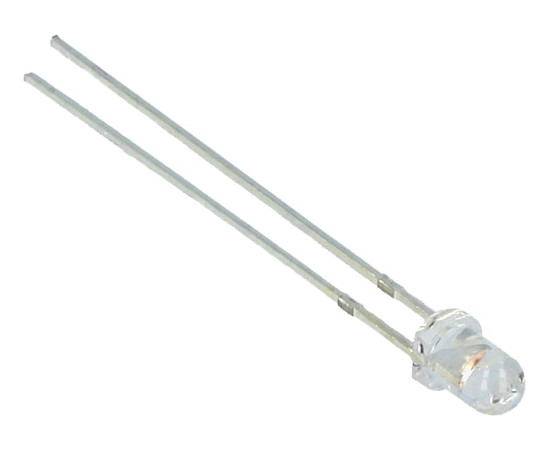

LED; THT; 3mm; pink; 1120~1560mcd; 10~15mA; 30°; 12V; -30~+85°C; waterclear

Parameters

Colour:	Pink
Brightness:	1120~1560mcd
Viewing angle:	30°
Forvard volatge [UF]:	12,0V
Chromatic coordinates:	x:0.45; y:0.17
Forward current (range):	10mA ~ 15mA
Operating temperature (range):	-30°C ~ 85°C

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSK5DK3131A-12V RoHS Case style: Rys.OLR.3w1560-12v Datasheet

In stock:

500 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3267	0,1805	0,1427	0,1295	0,1253

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSK5DK3131A-12V RoHS Case style: Rys.OLR.3w1560-12v Datasheet

In stock:

115 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,3314	0,2174	0,1556	0,1345	0,1276

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Colour:	Pink
Brightness:	1120~1560mcd
Viewing angle:	30°
Forvard volatge [UF]:	12,0V
Chromatic coordinates:	x:0.45; y:0.17
Forward current (range):	10mA ~ 15mA
Operating temperature (range):	-30°C ~ 85°C
Mounting:	THT
Diameter:	3mm
