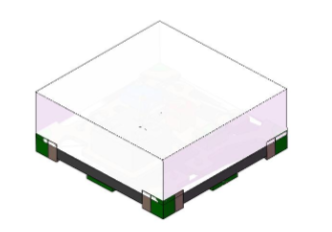

SK6805-EC15-001 OPSCO

Symbol Micros: OLRGB.SK6805-EC15-001

539300

OLRGB.SK6805-EC15-001

Contractor Symbol:

Case : Rys.OLRGB.SK6805-EC15-001

Datasheet

Technical drawing Add to favourites

LED SMD 1515 RGB 1,5x1,5x0,65mm; luminosity; 50mcd ~ 100mcd/120mcd ~ 240mcd/25mcd ~ 50mcd; wavelenght: 615nm ~ 625/520nm ~ 530nm/465nm ~ 477nm Viewing angle: 160° diode current: 6,3mA; working voltage: 3,7-5,5V

Parameters

Brightness:	50mcd ~ 100mcd/120mcd ~ 240mcd/25mcd ~ 50mcd
Colour:	RGB
Forvard volatge range:	3,7V ~ 5,5V
Forward current:	6,3mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 80°C
Viewing angle:	160°

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-08-30

Quantity of pcs.: 1000

• Parameters

Brightness:	50mcd ~ 100mcd/120mcd ~ 240mcd/25mcd ~ 50mcd
Colour:	RGB
Forvard volatge range:	3,7V ~ 5,5V
Forward current:	6,3mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 80°C
Viewing angle:	160°
Wavelength range:	615nm ~ 625/520nm ~ 530nm/465nm ~ 477nm
