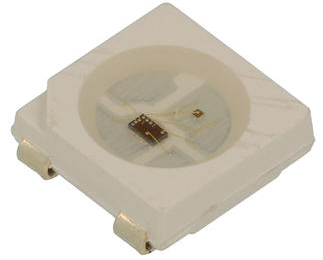

WS2812B-V4 WORLDSEMI

Symbol Micros: OLRGB.WS2812B-V4

500784

OLRGB.WS2812B-V4

Contractor Symbol:

Case : Rys.OLRGB.WS2812B-V4

Datasheet

Technical drawing Add to favourites

LED RGB PLCC4 (5050); dimensions: 5x5x1,57mm; luminosity: 300mcd ~ 500mcd/600mcd ~ 1000mcd/200mcd ~ 300mcd Wavelenght: 620nm ~ 622nm/522nm ~ 525nm/467nm ~ 470nm; operating voltage: 3,7-5,3V

Parameters

Mounting:	SMD
Colour:	RGB
Brightness:	300mcd ~ 500mcd/600mcd ~ 1000mcd/200mcd ~ 300mcd
Wavelength range:	620nm ~ 630nm/515nm ~ 525nm/465nm ~ 475nm
Forvard volatge range:	3,7V ~ 5,3V
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-24

Quantity of pcs.: 5000

• Parameters

Mounting:	SMD
Colour:	RGB
Brightness:	300mcd ~ 500mcd/600mcd ~ 1000mcd/200mcd ~ 300mcd
Wavelength range:	620nm ~ 630nm/515nm ~ 525nm/465nm ~ 475nm
Forvard volatge range:	3,7V ~ 5,3V
Operating temperature (range):	-25°C ~ 85°C
