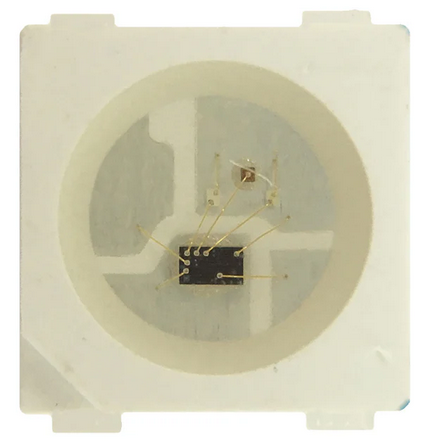

WS2812B-V6 WORLDSEMI

Symbol Micros: OLRGB.WS2812B-V6

536840

OLRGB.WS2812B-V6

Contractor Symbol:

Case : Rys.OLRGB.WS2812B-V6

Datasheet

Technical drawing Add to favourites

LED RGB PLCC6 (5050); dimensions: 5x5x1,57mm; luminosity: 300mcd ~ 500mcd/600mcd ~ 1000mcd/200mcd ~ 300mcd Wavelenght: 620nm ~ 630nm/515nm ~ 525nm/ 465nm ~ 475nm; operating voltage: 3,3-5,3V

Parameters

Mounting:	SMD
Colour:	RGB
Brightness:	300mcd ~ 500mcd/600mcd ~ 1000mcd/200mcd ~ 300mcd
Wavelength range:	620nm ~ 630nm/515nm ~ 525nm/ 465nm ~ 475nm
Forward current:	12mA
Forvard volatge range:	3,3V ~ 5,3V
Operating temperature (range):	-40°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-04-10

Quantity of pcs.: 1000

• Parameters

Mounting:	SMD
Colour:	RGB
Brightness:	300mcd ~ 500mcd/600mcd ~ 1000mcd/200mcd ~ 300mcd
Wavelength range:	620nm ~ 630nm/515nm ~ 525nm/ 465nm ~ 475nm
Forward current:	12mA
Forvard volatge range:	3,3V ~ 5,3V
Operating temperature (range):	-40°C ~ 85°C
