OLT.CTRL.RGBWW

Symbol Micros: OLT.CTRL.RGBWW
Contractor Symbol:
Case : Rys.OLT.CTRL.RGBWW
Parameters
Operating voltage: 12V
Output current: 6A
Output power: 0W
Operating temperature (range): -20°C ~ 60°C
Dimensions: 85 x 45 x 22.5mm
Manufacturer:: FSTAR Manufacturer part number:   Case style: Rys.OLT.CTRL.RGBWW
In stock:
18 pcs.
Quantity of pcs. 1+ 3+ 10+ 20+ 40+
Net price (EUR) 23,3188 22,4956 21,9499 21,7429 21,5924
Add to comparison tool
Packaging:
20
Operating voltage: 12V
Output current: 6A
Output power: 0W
Operating temperature (range): -20°C ~ 60°C
Dimensions: 85 x 45 x 22.5mm
Detailed description

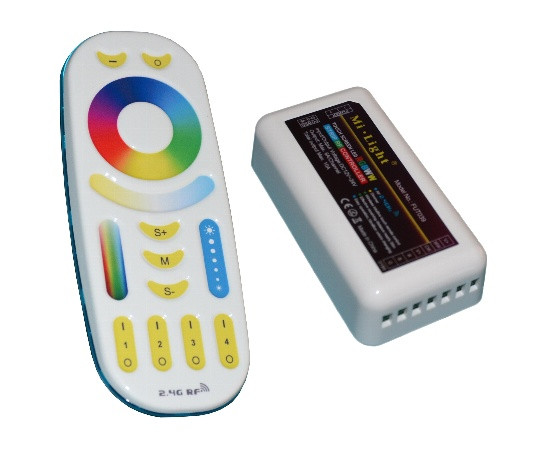

RGB + CCT LED Strip Controller with Remote

Input voltage: 12V - 24V DC
Output current: 6A / channel
Output: 5 channels
Dimensions: 85 x 45 x 22.5 mm
Control type: radio
Operating frequency: 2.4 GHz
Operating temperature: -20°C ~ +60°C
Remote dimensions: 56 x 38 x 138 mm

The RGB + CCT radio LED controller set includes a remote and LED receivers. This product allows control of LED lighting (RGB + CCT strips). It not only provides individual control of four zones via a touch remote but also supports Wi-Fi connectivity for control through mobile devices (provided an appropriate Wi-Fi module is used).

The controller and strip set enables a wide range of colors from the RGB spectrum along with CCT color temperature (shades: warm white, cool white). Additionally, it offers dimming and brightening of connected LED lighting, the ability to activate monochromatic white light, turning all zones on or off simultaneously, and various programs to change display modes and speed, allowing full utilization of RGB lighting capabilities.

The included 4-zone remote, powered by two AAA batteries (1.5V), features many buttons and a touch color ring. The remote allows control over colors, light intensity, and lighting modes.
