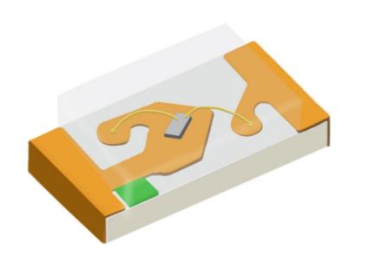

XL-1005UYC XINGLIGHT

Symbol Micros: OLY.XL-1005UYC

503324

OLY.XL-1005UYC

Contractor Symbol:

Case : Rys.OLY.XL-1005UYC

Datasheet

Technical drawing Add to favourites

LED SMD 0402 yellow; luminosity: 360-830mcd; diode current: 20mA Wavelenght: 585-595nm; viewing angle: 120°; operating voltage: 1,9-2,3V

Parameters

Brightness:	360mcd ~ 595mcd
Colour:	Yellow
Forvard volatge range:	1,9V ~ 2,3V
Forward current:	20mA
Mounting:	SMD
Operating temperature (range):	-20°C ~ 85°C
Viewing angle:	120°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	360mcd ~ 595mcd
Colour:	Yellow
Forvard volatge range:	1,9V ~ 2,3V
Forward current:	20mA
Mounting:	SMD
Operating temperature (range):	-20°C ~ 85°C
Viewing angle:	120°
Wavelength range:	585nm ~ 595nm
