XL-TD1608UYC XINGLIGHT

Symbol Micros: OLY.XL-TD1608UYC

503360

OLY.XL-TD1608UYC

Contractor Symbol:

Case : Rys.OLY.XL-TD1608UYC

Datasheet

Technical drawing Add to favourites

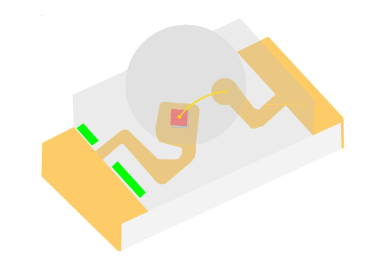

LED SMD 0603 yellow; luminosity: 70-150mcd; diode current: 20mA Wavelenght: 585-595nm; viewing angle: 35°; operating voltage: 1,9-2,3V

Parameters

Brightness:	70mcd ~ 150mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Flat
LED colours:	Yellow
LED diode current:	20mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	70mcd ~ 150mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Flat
LED colours:	Yellow
LED diode current:	20mA
Manufacturer:	XINGLIGHT
Mounting:	SMD
Nominal voltage:	1,9V ~ 2,3V
Operating temperature (range):	-40°C ~ 85°C
Power:	0,05W
Viewing angle:	35°
Wavelength range:	585nm ~ 595nm
