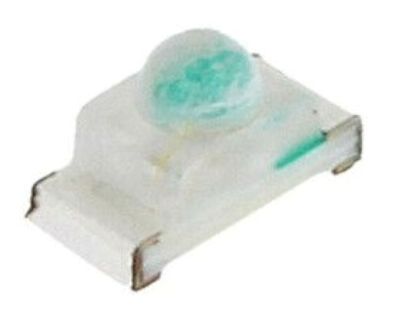

OSY5060341F OPTOSUPPLY

Symbol Micros: OLYS.0603p0400

540465

OLYS.0603p0400

Contractor Symbol:

Case : Rys.OLYS.0603p0400

Datasheet

Technical drawing Add to favourites

LED SMD 0603; colour: yellow; luminosity: 200-400mcd; viewing angle: 35°; Wavelenght: 585-595nm; diode current: 25mA; Power: 60mW

Parameters

Brightness:	200mcd ~ 400mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Convex
LED colours:	Yellow
LED diode current:	25mA

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-30

Quantity of pcs.: 3000

• Parameters

Brightness:	200mcd ~ 400mcd
Case:	0603
Diode lens:	Transparent
Diode type:	LED
Front:	Convex
LED colours:	Yellow
LED diode current:	25mA
Manufacturer:	OPTOSUPPLY
Mounting:	SMD
Nominal voltage:	1,8V ~ 2,4V
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	35°
Wavelength range:	585nm ~ 595nm
