OSG80402C1E OPTOSUPPLY

Symbol Micros: OLYZS.02c30

108096

OLYZS.02c30

Contractor Symbol:

Case : SMD 0402 (1005)

Datasheet

Technical drawing Add to favourites

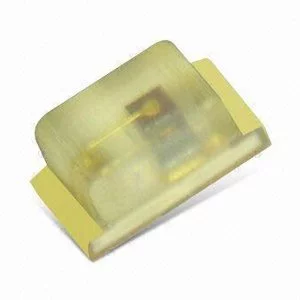

LED SMD 0402 (1005); yellow-green; 20~40mcd; 565~575nm; 20mA; 120°; 1.8~2.6V; -40~+85°C; clear

Parameters

Brightness:	20~40mcd
Colour:	Yellow-Green
Forvard volatge range:	1,8~2,6V
Forward current:	20mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	120°

All parameters

Manufacturer:: OPTOSUPPLY Manufacturer part number: OSG80402C1E RoHS Case style: SMD 0402 (1005) Datasheet

In stock:

1000 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2059	0,1031	0,0615	0,0509	0,0458

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Brightness:	20~40mcd
Colour:	Yellow-Green
Forvard volatge range:	1,8~2,6V
Forward current:	20mA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
Viewing angle:	120°
Wavelength range:	565~575nm
