HSME-C170 BROADCOM

Symbol Micros: OLZ.HSME-C170

477533

OLZ.HSME-C170

Contractor Symbol:

Case : Rys.OLZ.HSME-C170

Datasheet

Technical drawing Add to favourites

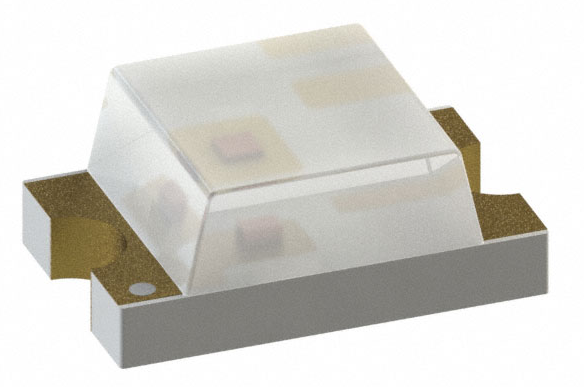

LED SMD 0805; green; luminosity: 18-50mcd; viewing angle: 170°; diode current: 20mA Wavelenght: 570-572nm; power: 52mW; working woltage: 2,1-2,6V

Parameters

Brightness:	18mcd ~ 50mcd
Case:	0805
Diode lens:	Diffusive
Diode type:	LED
Front:	Flat
LED colours:	Green
LED diode current:	20mA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	18mcd ~ 50mcd
Case:	0805
Diode lens:	Diffusive
Diode type:	LED
Front:	Flat
LED colours:	Green
LED diode current:	20mA
Manufacturer:	Broadcom
Mounting:	SMD
Nominal voltage:	2,1V ~ 2,6V
Operating temperature (range):	-40°C ~ 85°C
Power:	52mW
Viewing angle:	170°
Wavelength range:	570nm ~ 572nm
