OSG50603C1E OPTOSUPPLY

Symbol Micros: OLZ.OSG50603C1E

535044

OLZ.OSG50603C1E

Contractor Symbol:

Case : Rys.OLZ.OSG50603C1E

Datasheet

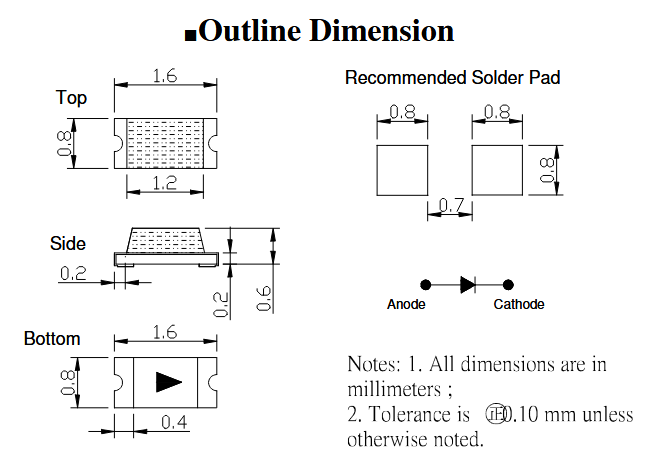

Technical drawing Add to favourites

LED SMD 0603 green; luminosity: 120-220mcd; diode current: 20mA Wavelenght: 520-530nm; viewing angle: 120°; operating voltage: 2,5-3,4V; power: 68mW

Parameters

Manufacturer:	OPTOSUPPLY
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Green
Brightness:	120mcd ~ 220mcd
Viewing angle:	120°

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	OPTOSUPPLY
Diode type:	LED
Mounting:	SMD
Case:	0603
LED colours:	Green
Brightness:	120mcd ~ 220mcd
Viewing angle:	120°
LED diode current:	20mA
Diode lens:	Transparent
Power:	68mW
Front:	Flat
Nominal voltage:	2,5V ~ 3,4V
Wavelength range:	520nm ~ 530nm
Operating temperature (range):	-40°C ~ 85°C
