VISHAY VLMC3100-GS08

Symbol Micros: OLZ.PLCC2.001.6

123969

OLZ.PLCC2.001.6

Contractor Symbol:

Case : Rys.PLCC2

Datasheet

Technical drawing Add to favourites

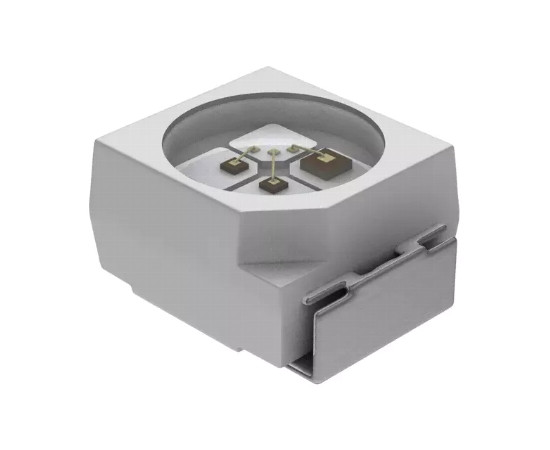

3528 (PLCC2) LED; green (562-575nm); luminosity: 0.71-1.6mcd viewing angle 120°; IF=7mA; VF=1.9-2.4V

Parameters

Manufacturer:	VISHAY
Diode type:	LED
Mounting:	SMD
Case:	3528 (PLCC2)
LED colours:	Green
Brightness:	0.71 - 1.6 mcd
Viewing angle:	120°

All parameters

Manufacturer:: Vishay Manufacturer part number: VLMC3100-GS08 RoHS Case style: Rys.PLCC2 Datasheet

In stock:

1455 pcs.

Quantity of pcs.	5+	20+	100+	400+	1500+
Net price (EUR)	0,2509	0,1377	0,0908	0,0767	0,0715

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	VISHAY
Diode type:	LED
Mounting:	SMD
Case:	3528 (PLCC2)
LED colours:	Green
Brightness:	0.71 - 1.6 mcd
Viewing angle:	120°
LED diode current:	2mA
Wavelength (nm):	562nm
Diameter:	2,4mm
Wavelength range:	562nm ~ 575nm
Forvard volatge range:	1.9 - 2.4V
Operating temperature (range):	-40°C ~ 100°C
