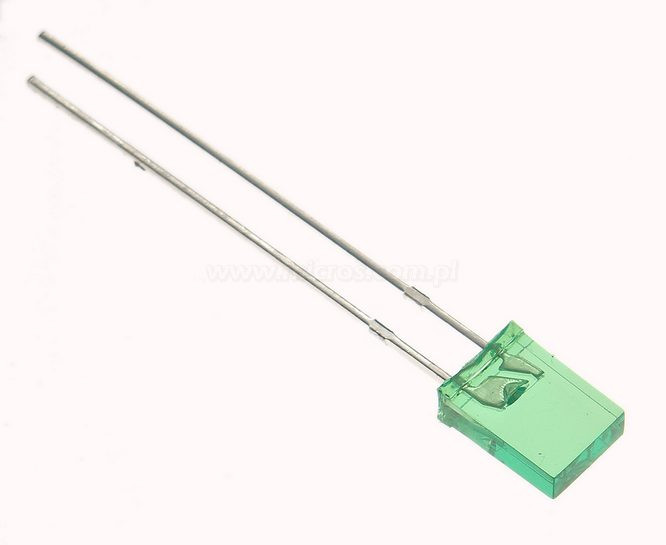

L-144GDT Kingbright

Symbol Micros: OLZ3x1m004

295870

OLZ3x1m004

Contractor Symbol:

Case : Rys.OLZ2x4m0004

Datasheet

Technical drawing Add to favourites

LED; THT; 3.9x1.9mm; green; 1~4mcd; 568nm; 20mA; 2.2~2.5V; diffusion; rectangular

Parameters

Brightness:	1~4mcd
Dimensions:	3,9x1,9mm
Diode type:	LED
Forvard volatge range:	2,2~2,5V
LED colours:	Green
LED diode current:	20mA
Manufacturer:	KingBright

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Brightness:	1~4mcd
Dimensions:	3,9x1,9mm
Diode type:	LED
Forvard volatge range:	2,2~2,5V
LED colours:	Green
LED diode current:	20mA
Manufacturer:	KingBright
Mounting:	THT
Operating temperature (range):	-40°C ~ 85°C
Shape:	Rectangular
Wavelength (nm):	568nm
