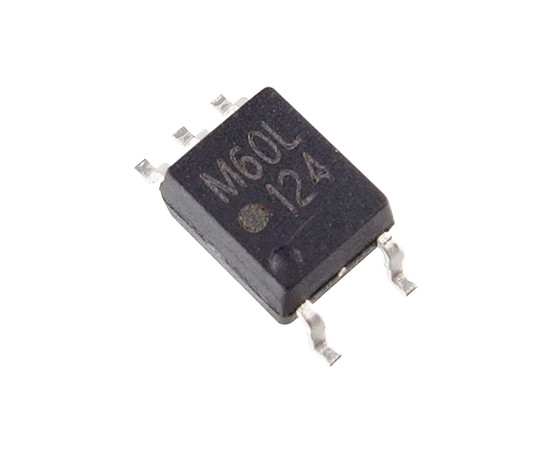

ACPL-M60L-000E

Symbol Micros: OOACPLM60L

85483

OOACPLM60L

Contractor Symbol:

Case : SOIC05t/r

Datasheet

Technical drawing Add to favourites

Optocoupler; CTR: n/a; SOIC05t/r; open collector; 3.75 kVrms; 5.5 V; data rate: 15 MBd.

Parameters

Case:	SOIC05t/r
CTR:	N/A
Insulation breakdown voltage:	3750V
Output type:	Open Collector
Output voltage [V]:	5,5V

All parameters

Manufacturer:: AVAGO Manufacturer part number: ACPL-M60L-500E RoHS Case style: SOIC05t/r Datasheet

In stock:

500 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,6892	1,3380	1,1393	1,0468	0,9937

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Case:	SOIC05t/r
CTR:	N/A
Insulation breakdown voltage:	3750V
Output type:	Open Collector
Output voltage [V]:	5,5V
