EE-SX1041

Symbol Micros: OOEESX1041

123152

OOEESX1041

Contractor Symbol:

Case : Rys.EE-SX1041

Datasheet

Technical drawing Add to favourites

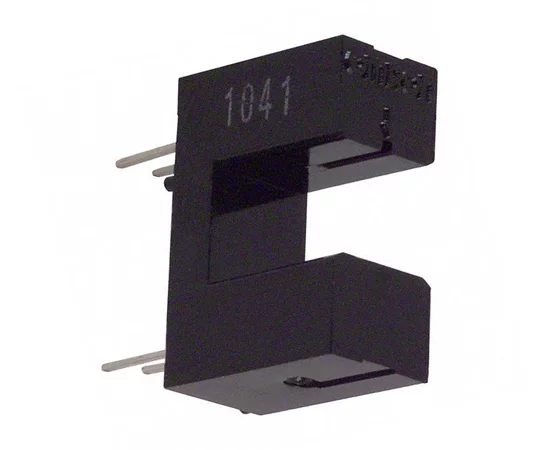

Photomicrosensor, slot-type, phototransistor output Slot width: 5mm, mounting: THT, If=50mA, Vce=30V, Ic=20mA, Pc=100mW, -25÷95°C

Parameters

Range:	5mm
Supply voltage:	30V
Operating current:	50mA
Operating temperature (range):	-25°C ~ 95°C
Type of optical sensor:	Photodiode
Connection:	Soldering
Sensor type:	Photoelectric

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Range:	5mm
Supply voltage:	30V
Operating current:	50mA
Operating temperature (range):	-25°C ~ 95°C
Type of optical sensor:	Photodiode
Connection:	Soldering
Sensor type:	Photoelectric
