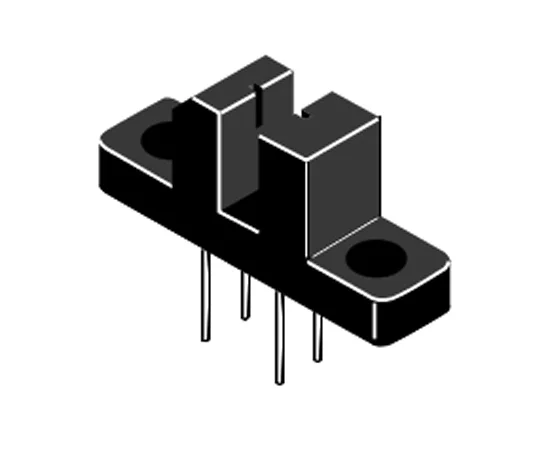

H21A6

Symbol Micros: OOH21A6

12422

OOH21A6

Contractor Symbol:

Case : Rys.H21Ax

Datasheet

Technical drawing Add to favourites

optocoupler 3mm; Vout 55V; Vcesat 55V; If 50mA; Ic 20mA; -55°C~100°C;

Parameters

Manufacturer:	Fairchild
Number of channels:	1
Output type:	Phototransistor
Forward current:	50mA
Collector current [Ic]:	20mA
Output voltage:	55V
Operating temperature (range):	-55°C ~ 100°C

All parameters

Manufacturer:: Fairchild Manufacturer part number: H21A6 RoHS Case style: Rys.H21Ax Datasheet

In stock:

27 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,4261	1,0885	0,9019	0,7910	0,7508

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Fairchild
Number of channels:	1
Output type:	Phototransistor
Forward current:	50mA
Collector current [Ic]:	20mA
Output voltage:	55V
Operating temperature (range):	-55°C ~ 100°C
Slot width:	3 mm
Case:	Rys.H21Ax
