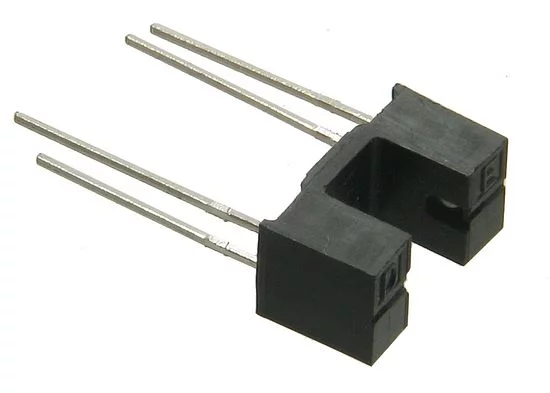

LTH-301A

Symbol Micros: OOLTH301a

4891

OOLTH301a

Contractor Symbol:

Case : Rys31.1b

Datasheet

Technical drawing Add to favourites

Transmissive; gap:5.2mm; Vout=30V; Vcesat=0.4V; If=50mA; Ic=20mA; –25°C~85°C; Substitute: LTH301A; LTH-301A;

Parameters

Manufacturer:	LITEON
Number of channels:	1
Output type:	Phototransistor
Forward current:	50mA
Collector current [Ic]:	20mA
Output voltage:	30V
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	LITEON
Number of channels:	1
Output type:	Phototransistor
Forward current:	50mA
Collector current [Ic]:	20mA
Output voltage:	30V
Operating temperature (range):	-25°C ~ 85°C
Slot width:	5,2mm
Case:	Rys31.1b
