TCST1103

Symbol Micros: OOTCSt1103
Contractor Symbol:
Case : Rys30.2a
Transmissive; 3mm; CTR>20%; Vout 70V; Vcesat 0.4V; If 60mA; Ic 100mA; -55°C~85°C;
Parameters
Manufacturer: VISHAY
Number of channels: 1
Output type: Phototransistor
CTR: >20%
Forward current: 60mA
Collector current [Ic]: 100mA
Output voltage: 70V
Manufacturer:: Vishay Manufacturer part number: TCST1103 RoHS Case style: Rys30.2a Datasheet
In stock:
2397 pcs.
Quantity of pcs. 1+ 5+ 20+ 85+ 340+
Net price (EUR) 1,1212 0,7428 0,6135 0,5571 0,5336
Add to comparison tool
Packaging:
85
Manufacturer:: Vishay Manufacturer part number: TCST1103 Case style: Rys30.2a
External warehouse:
3400 pcs.
Quantity of pcs. 255+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 0,5336
Add to comparison tool
Packaging:
85
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Manufacturer:: Vishay Manufacturer part number: TCST1103 Case style: Rys30.2a
External warehouse:
4390 pcs.
Quantity of pcs. 1020+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 0,5336
Add to comparison tool
Packaging:
1020
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.
Manufacturer:: Vishay Manufacturer part number: TCST1103 Case style: Rys30.2a
External warehouse:
4460 pcs.
Quantity of pcs. 1020+ (Need a significantly larger quantity? Ask for price).
Net price (EUR) 0,5336
Add to comparison tool
Packaging:
1020
Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.


Item in delivery
Estimated date:
2025-08-30
Quantity of pcs.: 10200


Item in delivery
Estimated date:
2025-07-30
Quantity of pcs.: 7735
Manufacturer: VISHAY
Number of channels: 1
Output type: Phototransistor
CTR: >20%
Forward current: 60mA
Collector current [Ic]: 100mA
Output voltage: 70V
Operating temperature (range): -55°C ~ 85°C
Slot width: 3 mm
Case: Rys.30.2a
Detailed description

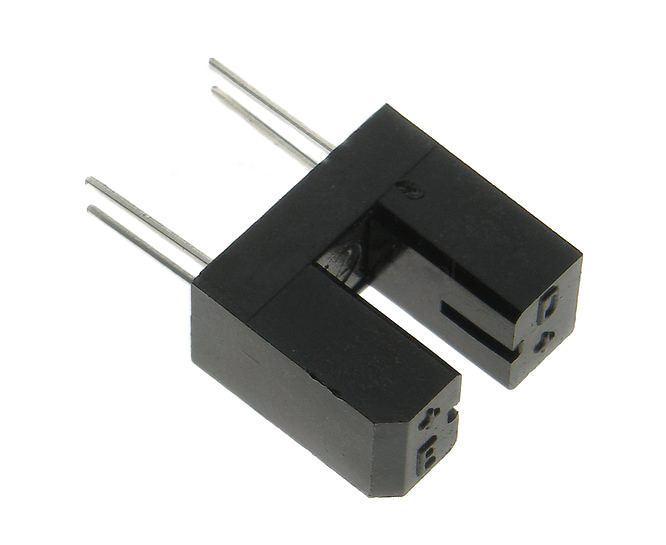

Transoptor TCST1103 is a precise optoelectronic device characterized by high reliability and versatility. Thanks to its design, where the infrared diode acts as an emitter and the phototransistor as a detector, the transoptor enables effective detection of changes in the measuring gap, which has a width of 3mm.

TCST1103 features a diode forward voltage range of 1.25V to 1.6V at 60 mA current, with a typical junction capacitance of 50pF. At the output, the collector-emitter voltage reaches a maximum of 70V, while the collector current (Ic) does not exceed 100mA, ensuring measurement precision even in low current ranges. With a maximum reverse voltage of 6V and a forward current of up to 60mA, the emitter is highly efficient, and the detector, capable of handling collector currents up to 100mA, guarantees reliability and durability in use.

TCST1103 operates in a wide temperature range from -55°C to +85°C, making it suitable for demanding industrial conditions. Its high resistance to interference and compact design make the TCST1103 an excellent choice for applications such as encoders, counters, and optical switches.
