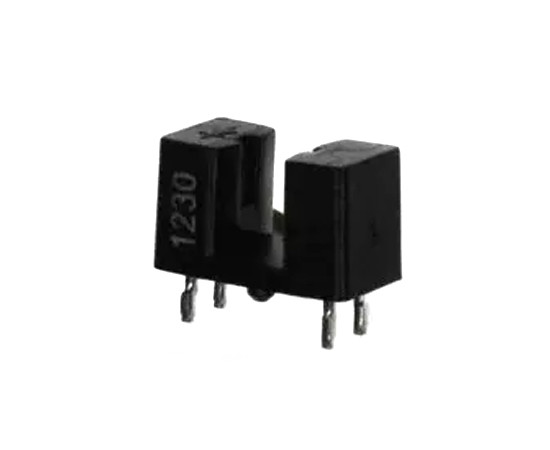

TCST1230 4-PIN VISHAY

Symbol Micros: OOTCSt1230

109549

OOTCSt1230

Contractor Symbol:

Case : Rys.TCST1230

Datasheet

Technical drawing Add to favourites

Photointerrupter Transmissive; 2,8mm; Vout 70V; Vcesat 0,4V; If 60mA; Ic 14mA; -25°C~85°C;

Parameters

Manufacturer:	VISHAY
Number of channels:	1
Output type:	Phototransistor
Forward current:	60mA
Collector current [Ic]:	100mA
Output voltage:	70V
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SIVAGO SEMICONDUCTOR Manufacturer part number: TCST1230 RoHS Case style: Rys.TCST1230

In stock:

100 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,8808	0,5520	0,4580	0,4087	0,3829

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: Vishay Manufacturer part number: TCST1230 RoHS Case style: Rys.TCST1230 Datasheet

In stock:

190 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	0,8831	0,5825	0,4792	0,4298	0,4204

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	VISHAY
Number of channels:	1
Output type:	Phototransistor
Forward current:	60mA
Collector current [Ic]:	100mA
Output voltage:	70V
Operating temperature (range):	-25°C ~ 85°C
Slot width:	2,8mm
Case:	Rys.TCST230
