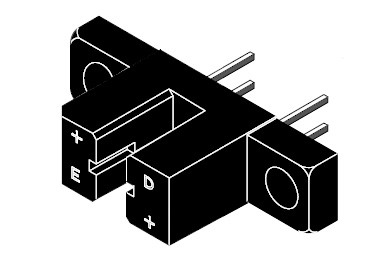

TCST2103

Symbol Micros: OOTCSt2103

7913

OOTCSt2103

Contractor Symbol:

Case : Rys30.2b

Datasheet

Technical drawing Add to favourites

Transmissive; gap 3mm; CTR >20%; Vout 70V; Vcesat 0.4V; If 60mA; Ic 100mA; -55°C~85°C;

Parameters

Manufacturer:	VISHAY
Number of channels:	1
Output type:	Phototransistor
CTR:	>20%
Forward current:	60mA
Collector current [Ic]:	100mA
Output voltage [V]:	70V

All parameters

Manufacturer:: Vishay Manufacturer part number: TCST2103 Case style: Rys30.2b

External warehouse:

6691 pcs.

Quantity of pcs.	1020+ (Please wait for the order confirmation)
Net price (EUR)	0,5237

Add to comparison tool Add inquiry (RFQ)

Packaging:
1020

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-26

Quantity of pcs.: 85

• Parameters

Manufacturer:	VISHAY
Number of channels:	1
Output type:	Phototransistor
CTR:	>20%
Forward current:	60mA
Collector current [Ic]:	100mA
Output voltage [V]:	70V
Operating temperature (range):	-55°C ~ 85°C
Slot width:	3 mm
Case:	Rys.30.2b
