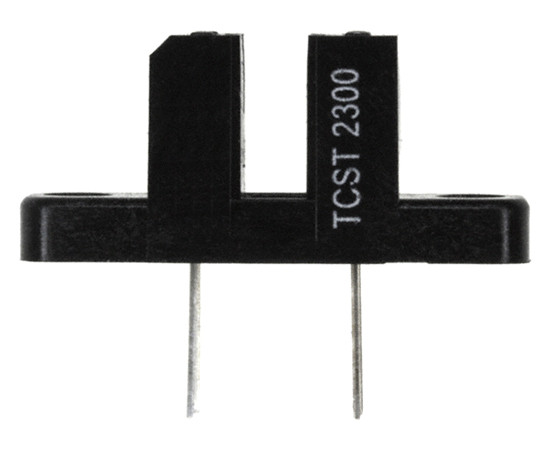

TCST2300

Symbol Micros: OOTCSt2300

45556

OOTCSt2300

Contractor Symbol:

Case : Rys30.2b

Datasheet

Technical drawing Add to favourites

Transmissive; CTR >2.5%; Uout 70V; Ucesat=0.4V; If=60mA; Ic=100mA Phototransistor

Parameters

Collector current [Ic]:	100mA
CTR:	>2.5%
Forward current:	60mA
Manufacturer:	VISHAY
Operating temperature (range):	-55°C ~ 85°C
Output type:	Phototransistor
Slot width:	3,1mm

All parameters

Manufacturer:: Vishay Manufacturer part number: TCST2300 Case style: Rys30.2b

External warehouse:

340 pcs.

Quantity of pcs.	85+ (Please wait for the order confirmation)
Net price (EUR)	0,7929

Add to comparison tool Add inquiry (RFQ)

Packaging:
85

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Collector current [Ic]:	100mA
CTR:	>2.5%
Forward current:	60mA
Manufacturer:	VISHAY
Operating temperature (range):	-55°C ~ 85°C
Output type:	Phototransistor
Slot width:	3,1mm
