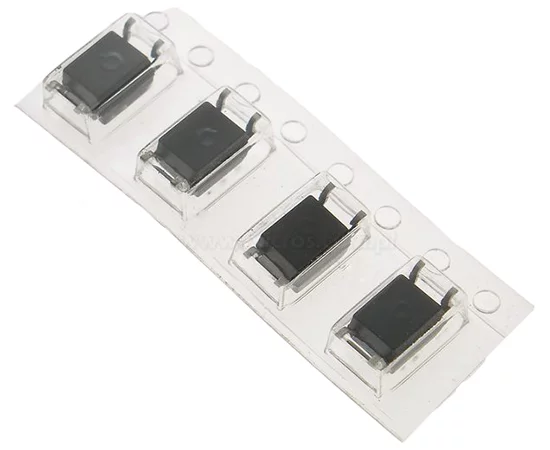

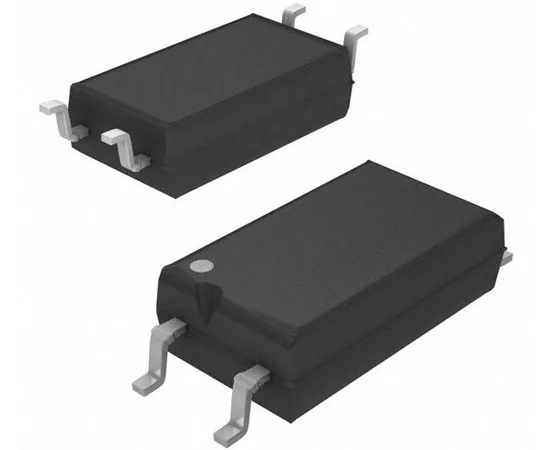

TLP181(GB-TPL,F)

Symbol Micros: OOTLP181

Case : SO 4

Optocoupler; CTR: 50-600%; SO 4; NPN phototransistor; 3.75 kVrms; 80 V OBSOLETE; REPLACEMENT: TLP181GB-S; KPC357NT0C; TIL198 TLP185(GB) LTV-356T-B SFH690AT SFH690BT VOM617A-4T PC357NTJ000F HCPL-181

Parameters

Case:	SO 4
CTR:	50-600%
Insulation breakdown voltage:	3750V
Output type:	NPN Phototransistor
Output voltage [V]:	80V

Manufacturer:: Toshiba Manufacturer part number: TLP181(GB-TPL,F) RoHS Case style: SO 4 t/r Datasheet

In stock:

8 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,4977	1,1857	1,0100	0,9268	0,8806

Parameters
Description

Case:	SO 4
CTR:	50-600%
Insulation breakdown voltage:	3750V
Output type:	NPN Phototransistor
Output voltage [V]:	80V

Detailed description

Manufacturer: TOSHIBA / ISOCOM
Type of semiconductor component: optocoupler
Mounting: SMD
Number of channels: 1
Output type: transistor
Insulation voltage: 3.75kV
Current transfer ratio at forward current: 50-150%@5mA
Collector-emitter voltage: 80V
Case: MSOP04 t/r

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3051	0,1616	0,1253	0,1156	0,1107

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2334	0,1167	0,0696	0,0576	0,0518

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3097	0,1659	0,1292	0,1169	0,1130
