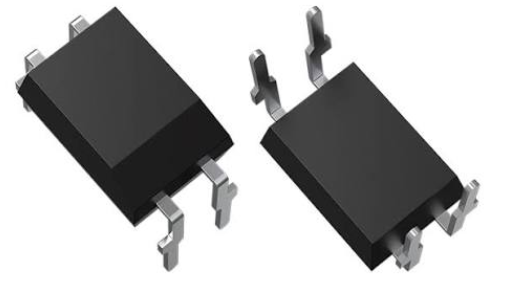

TLP223JF TOSHIBA

Symbol Micros: OOTLP223JF

527038

OOTLP223JF

Contractor Symbol:

Case : Rys.OOTLP223JF

Datasheet

Technical drawing Add to favourites

Photorelay; 1A; 480V; 5000Vrms; -40°C ~ 110°C; Case: PDIP4

Parameters

Case:	PDIP04
Insulation breakdown voltage:	5000V
Load current:	1A
Manufacturer:	TOSHIBA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 110°C
Output voltage [V]:	480V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	PDIP04
Insulation breakdown voltage:	5000V
Load current:	1A
Manufacturer:	TOSHIBA
Mounting:	SMD
Operating temperature (range):	-40°C ~ 110°C
Output voltage [V]:	480V
