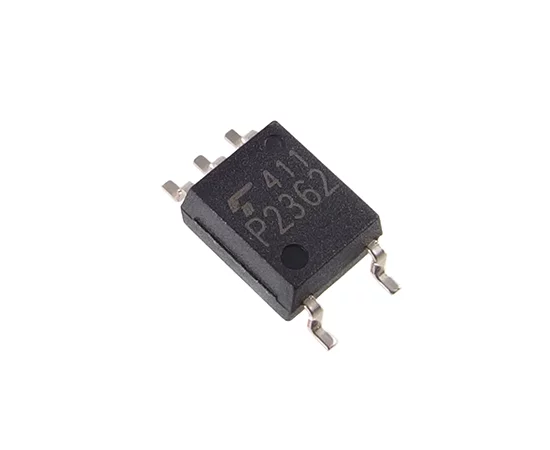

TLP2362

Symbol Micros: OOTLP2362

82337

OOTLP2362

Contractor Symbol:

Case : SOP06

Datasheet

Technical drawing Add to favourites

Optocoupler; CTR: n/a; SOP06; open collector; 3.75 kVrms; 5.5 V; data rate: 10 MBd. Supersedes for TLP113 TLP2362-TRP.E-T TLP2362-TPL.E-T TLP2362-E-T

Parameters

Case:	SOP06
CTR:	N/A
Insulation breakdown voltage:	3750V
Output type:	Open Collector
Output voltage [V]:	5,5V

All parameters

Manufacturer:: Toshiba Manufacturer part number: TLP2362(TPL,E(T RoHS Case style: SOP06 t/r Datasheet

In stock:

22062 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,9024	0,5724	0,4501	0,4108	0,3924

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

• Parameters

Case:	SOP06
CTR:	N/A
Insulation breakdown voltage:	3750V
Output type:	Open Collector
Output voltage [V]:	5,5V
