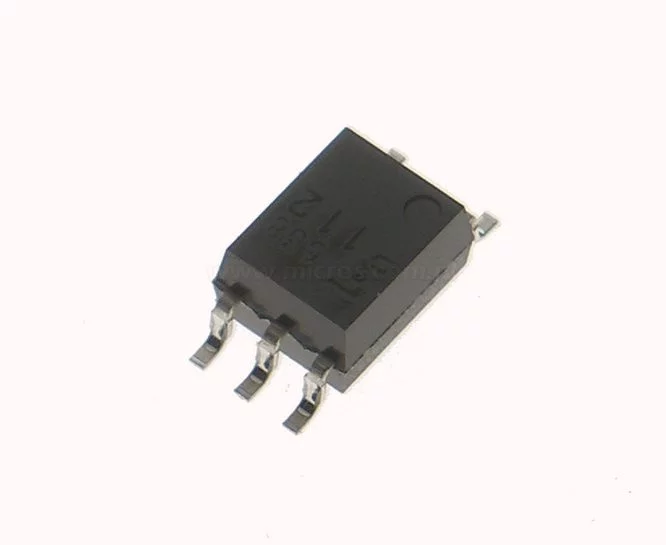

TLP2368

Symbol Micros: OOTLP2368

127511

OOTLP2368

Contractor Symbol:

Case : SOP05

Datasheet

Technical drawing Add to favourites

Photocoupler; Photo-IC Output; Inverter Logic; Viso 3750Vrms; Vo 6V; Io 25mA; -40°C ~ 125°C; Equivalent: TLP2368(E(T; TLP2368(TPL,E(T; TLP2368(TPR,E(T;

Parameters

Case:	SOP05
CTR:	N/A
Insulation breakdown voltage:	3750V
Output type:	Photo IC
Output voltage [V]:	6V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	SOP05
CTR:	N/A
Insulation breakdown voltage:	3750V
Output type:	Photo IC
Output voltage [V]:	6V
